SPECIFICATIONS

Application: Wood Saw

Blade Diameter: 160MM

Brand Name: FESTOOL

Certification: CE

Item Number/Model: 576710/TS 55 FEBQ-Plus

Model Number: TS 55 FEBQ-Plus

Motor type: Brushless

No-Load Speed: 5800RPM

Origin: Mainland China

Power Consumption: 1200W

Power Source: AC

Rated Voltage: 220V

Saw Type: Circular Saw

Usage: Renovation Team

Weight: 4.5KG

is_customized: Yes

FESTOOL TS 55 FEBQ-Plus Circular Saw Plunge Cut Track Fine Size Carpentry Professional Level Power Cutting Tool 220V 576710

SKU1：TS 55 FEBQ-Plus

SKU2：TS 55 FEBQ-Plus + ToolBox

TS 55 FEBQ-Plus

Plunge Cut Track Saw

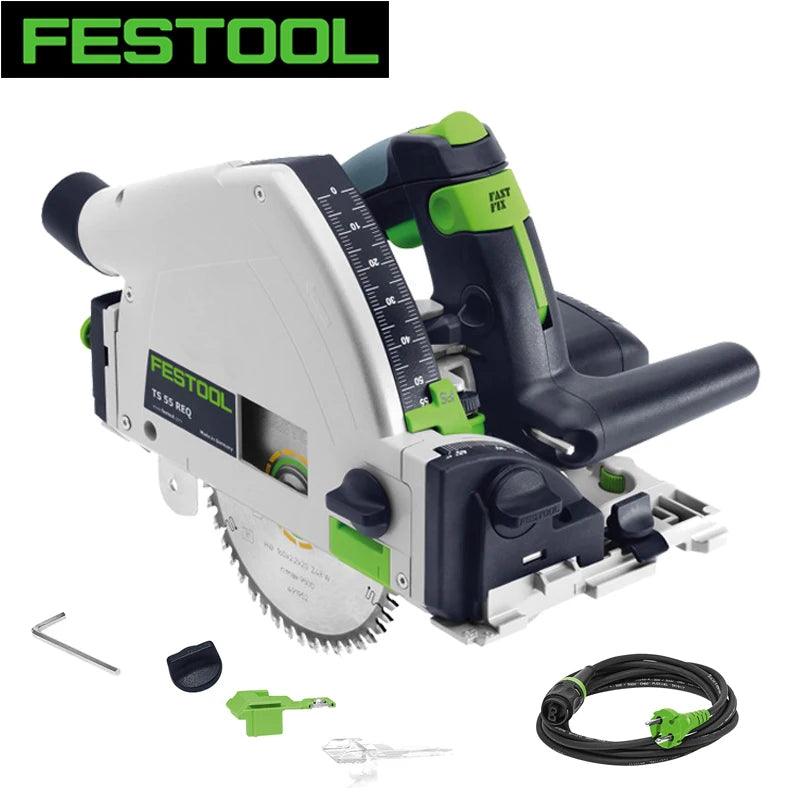

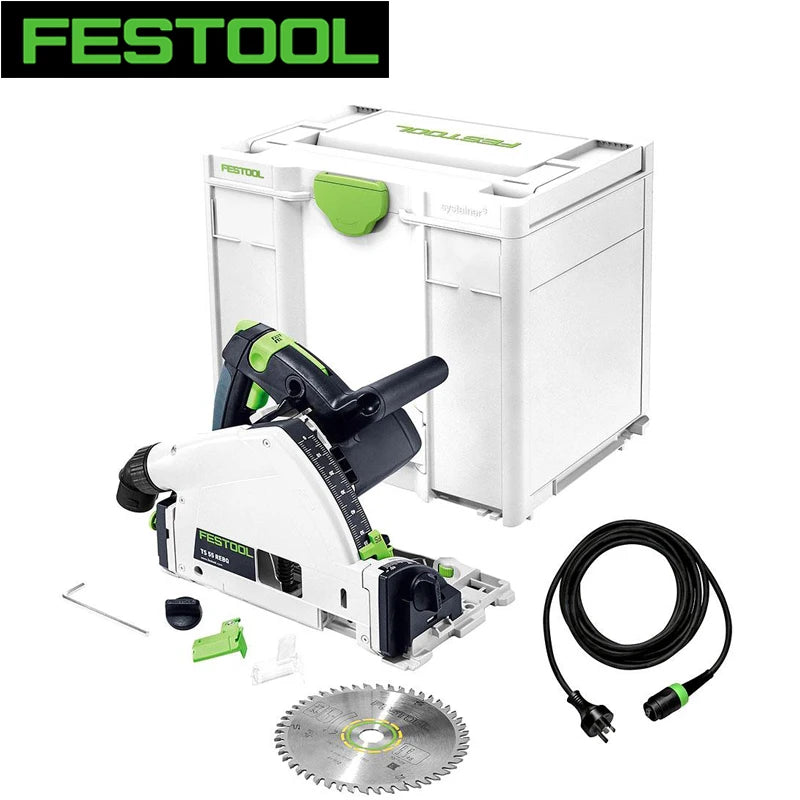

Iltems included

▲Circular saw blade WOOD FINE CUT HW 160 x1,8 x 20 WD42

▲Flag window; vision panel

▲Hex key, WAF 5

▲plug it-power cable (4 m)

▲Splinterguard

▲Systainer SYS3 M 337

Functions

Our masterpiece. Decisively improved. Now twice as fast.

Millions of saws do not lie: The TS has always stood out with its absolute precision cuts, maximum power and extreme durability. The usual reliability remains – but the working speed is unprecedented: The TS 55 now saws at up to twice the speed. In addition, the new generation of cutting blades guarantees perfect cutting quality with maximum cutting performance. With accessories, such as guide rails and the angle stop, or sophisticated and proven details, such as the splinter guard and extraction system perfectly matched to the machine, the TS 55 provides excellent work results and a top-class sawing system – for every challenge.

▲Concentrated torque and up to twice as fast work progress with an increased saw blade service life

▲Virtually splinter-free on both sides thanks to attachable splinter guard

▲The cutting edge from 90° to 47° remains unchanged even when the saw bevels

▲Top-class sawing system thanks to a variety of accessories

▲Riving knife for safer work and simple positioning in existing joint

▲Angle adjustment with undercut function from -1° to 47°

Product highlights

Now twice as fast.

Thanks to our new generation of saw blades and the concentrated torque of our track saw, you will be able to work up to twice as fast. Maximum cutting performance meets perfect cutting quality.

Proven a million times over.

Festool means track saws. Festool track saws embody absolute precision, high power and considerable durability. You can count on them. Day after day. One cut at a time.

Sawing where anything is possible.

Our track saws are as versatile as the challenges you face: With our guide rails, the wide variety of different saw blades and the perfectly matched extraction system, you are set up for excellent work results – we offer a top-class sawing system for every application.

Product Details

Exceptional torque

The concentrated torque of our plunge-cut saw enables work progress at up to twice the speed with an increased saw blade service life. Our new generation of saw blades impresses users when combined with maximum cutting performance and perfect cutting quality.

Perfect cuts reduce the need for reworking

With the clip-on splinter guard in combination with the guide rail, it is even possible to saw on both sides without virtually any splinters.

Exact cuts, even at an angle

The TS 55 enables precise work. The cutting edge from 90° to 47° remains unchanged even when the saw swivels.

Precise and healthy working with a system

Combined with our guide rails, a wide range of saw blades, the adapted extraction system, saw table, angle stop and splinter guard, we offer a top-class sawing system.

Improved safety, easy handling

The spring-loaded guide wedge runs in front of the saw blade to prevent it from jamming and makes it easier to insert the blade in existing joints.

Angle setting from -1° to 47°

The angles 0° and 45° can be selected directly using the locking positions. Undercuts are also possible with the extended adjustment option from -1° to 47°.

Best orientation for plunge cuts

Transparent sliding viewing window and the additional markings for the starting and end point provide a good view of the saw blade.

Maximum flexibility

The slimline housing allows users to make cuts up to the edges and in close proximity to the wall (12 mm).

More options thanks to control electronics

Our fitted control electronics enable speed control for temperature monitoring, a quick-acting brake and perfect adaptation to the material (for FEBQ variant only).

FastFix saw blade changing system

Always adapted to the working material. The FastFix spindle stop makes it extremely easy to change the saw blade. The correct saw blade is fitted in just a few steps and the sawing speed is adapted to the material.

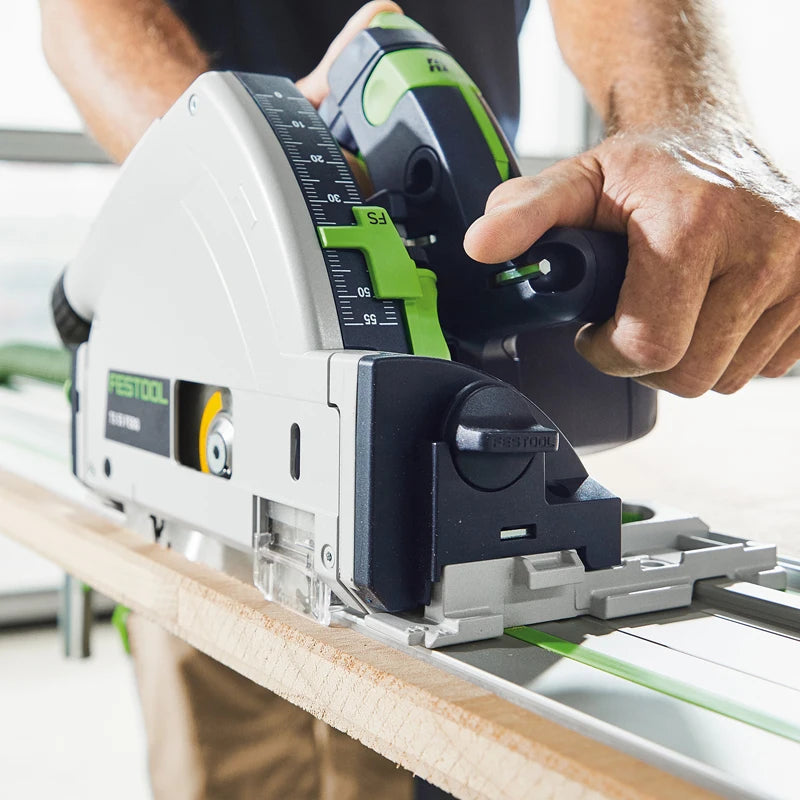

Exact depth setting

Easy to read and adjust: The dual cutting depth scale for working with or without a guide rail. Now even easier thanks to extra large font and precision adjustment.

Usage

Main applications

▲Precise circular in materials up to 55 mm thick

▲Cutting interior doors to length using guide rail and circular saw

▲Manufacturing expansion joints in parquet flooring and false joints

▲Cutting chipboard to size

▲Cutting and processing plasterboard

Technical Data

Idle engine speed:2 000 - 5 800 RPM

Weight:10.58 lbs (4.8 kg)

Saw blade diameter:6-1/4" (160 mm)

Transport weight incl. accessories:7.70 kg

Drive type:Mains

Cutting depth at 45°:1-11/16" (43 mm)

Dust extraction connection dia.:1-1/16"/1-7/16" (27/36 mm)

Cable length:13.123 ft (4 m)

Power consumption:1 200 watt

Cutting depth:0" - 2-1/8" (0 - 55 mm)

Angular range:-1 - 47 °
